Navigating the global sourcing landscape for commercial and high-end residential access control doors requires evaluating structural metallurgy, thermal break performance, and smart lock system integration. As modern architectural specs demand zero-trust perimeter security, choosing an established OEM manufacturer with direct extrusion control and electronic access capabilities is paramount for project success.
Flagship Access Control Aluminum Doors
Engineered for commercial buildings, luxury villas, and security-critical entry points. Factory-direct wholesale models customized for global project standards.
Modern Residential Front Entry Aluminum Security Door
Engineered with a continuous spring chamber, reinforced multi-point mortise pocket, and 6063-T5 aluminum framing. Provides extreme weatherproofing and anti-pry perimeter locking for high-end residential entrances.
WANJIA Smart Multi Lock Aluminum Entrance Security Door
Features integrated smart electronic access options including biometrics, keypad, and IC card reader built directly into the handle bar. Reinforced with anti-drill manganese plates and multi-bolt deadlock.

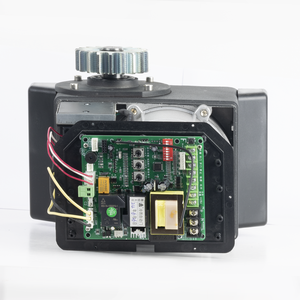

Heavy-Duty Automatic Sliding Gate Aluminum Access Operator
Automated heavy-duty aluminum gate system paired with motorized sliding access control operators. Supports RS485 loop detectors, infrared safety sensors, and long-range RFID vehicular tags.

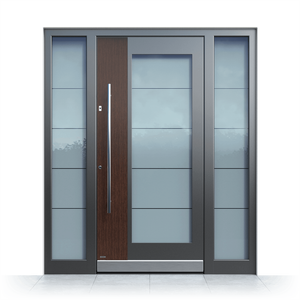

Modern Minimalist Waterproof Aluminum Security Swing Door
Architectural minimalist profile boasting flush leaf integration, concealed heavy-duty 3D adjustable hinges, and triple EPDM weatherstripping. Complete water resistance for exposed exterior elevations.

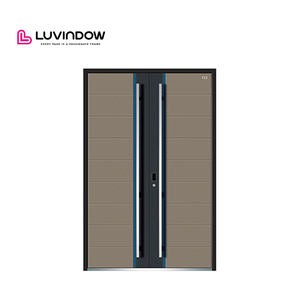

Custom Fireproof Commercial Aluminum Security Entrance Door
Certified fire-rated aluminum entrance system designed for commercial building access control points. Incorporates intumescent smoke seals, electric panic bars, and automatic door closers.

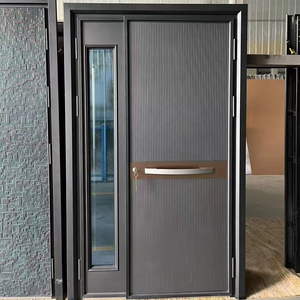

Cast Aluminum Solid Armor Exterior Security Entrance Door
Heavyweight cast aluminum decorative exterior panels bonded to an armored steel structural core. Combines high sound insulation, fire resistance, and luxury hand-carved aesthetic finishes.
Anti-Theft Wholesale Metal & Aluminum Front Security Door
Cost-optimized high-volume wholesale entrance solution. Utilizes high-tensile 6063-T5 aluminum frames, powder-coated surface treatments, and pre-routed lock cutouts for rapid field installation.

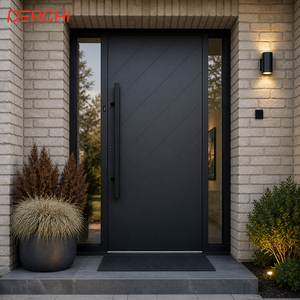

Thermal Break Soundproof Custom Aluminum Front Door
High-performance energy efficient entrance door equipped with a PA66GF25 polyamide thermal bridge barrier. Dramatically reduces structural thermal conductivity while offering superior acoustic dampening.
Access Control Aluminum Door Engineering & Sourcing Whitepaper
In modern commercial architecture and high-security residential master planning, access control aluminum entrance systems act as the primary defense line and perimeter communication hub. Sourcing managers and project engineers must evaluate these assemblies beyond visual aesthetics, focusing on mechanical yield strength, thermal efficiency, and electronic lock integration protocols.
1. Structural Extrusion Metallurgy: 6063-T5 vs. 6061-T6 Specifications
The base frame of a commercial access control door relies on high-grade extruded aluminum alloys. The vast majority of architectural systems utilize 6063-T5 aluminum due to its exceptional surface finish capabilities, excellent corrosion resistance, and structural tensile strength of ≥160 MPa. For oversized pivot entry doors exceeding 3.5 meters in height or doors exposed to severe wind-load zones (such as hurricane-prone coastal regions), engineers specify 6061-T6 aluminum profiles, offering a ultimate tensile strength of ≥290 MPa. Wall thickness across structural frame profiles should strictly maintain a minimum threshold of 2.0mm to 3.0mm to prevent frame deflection when bearing heavy armored glass infills or heavy motorized locking mortises.
2. Electronic Access Control Architecture: Smart Lock & Wiring Integration
Unlike legacy mechanical doors, modern access control doors must seamless route electrical wiring through internal extrusion chambers without compromising structural perimeter seals or risking cable shearing. Professional suppliers design dedicated wire raceways within the aluminum profiles, facilitating the integration of:
- Wiegand & OSDP Communication Protocols: Facilitating secure encrypted communication between door-mounted biometric readers (fingerprint, 3D facial recognition, palm vein) and centralized building management systems (BMS).
- Electric Solenoid & Magnetic Mortise Locks: High-frequency commercial doors utilize fail-safe or fail-secure motor-driven multi-point locks capable of holding forces up to 1,000 kgf.
- Power Transfer Hinges & Loop Conduit: Heavy-duty continuous gear hinges or concealed 3D hinges fitted with internal ribbon cables ensure continuous power transmission for low-voltage electronic latch retractors.
B2B Sourcing Specification Matrix
| Performance Criteria | Standard Commercial Door | Thermal Break Security Door | Armored Cast Aluminum Door |
|---|---|---|---|
| Profile Alloy & Temper | 6063-T5 (1.8mm - 2.0mm) | 6063-T5 / T6 (2.5mm - 3.0mm) | 6063-T5 Frame + Cast Al Panels |
| Access Control Integration | Basic Electric Strike | Multi-Point Solenoid / OSDP RFID | Embedded Smart Biometric Pull Handle |
| Thermal Insulation (U-Value) | 3.5 - 4.2 W/m²K | 1.0 - 1.4 W/m²K (PA66GF25) | 1.2 - 1.8 W/m²K (PU Foam Core) |
| Security Burglar Rating | EN 1627 RC2 | EN 1627 RC3 / RC4 | Class 3 Bullet & Anti-Pry Armored |
| Surface Finish Warranty | Standard Powder Coat (5 Yrs) | PVDF Fluorocarbon (15+ Yrs) | Anodized Hard-Coat (20+ Yrs) |
3. Surface Treatment Engineering: PVDF vs. Anodizing for Salt Spray Resistance
Exterior aluminum doors installed in coastal hotels, offshore offices, or high-humidity regions face aggressive pitting corrosion caused by airborne chlorides. Sourcing teams must ensure the coating meets rigorous international standards such as AAMA 2605. PVDF (Polyvinylidene Fluoride) 3-coat fluorocarbon spraying delivers superior UV resistance and color retention under extreme solar radiation. When evaluated under ASTM B117 salt spray testing chambers, high-grade PVDF and Class I Anodized (18-25 micron layer) finishes survive over 3,000 to 5,000 hours without surface blistering, film detachment, or creep corrosion.
Future Procurement & Tech Trends (2026–2030)
Key technological transformations driving the next decade of commercial and villa door sourcing decisions.
1. Zero-Trust IoT & Matter Integration
Future access control hardware is shifting away from isolated smart locks toward Matter-over-Thread unified IoT protocols. Smart aluminum doors will feature embedded sensors that continuously stream door status, thermal seal compression data, and unauthorized tampering alerts directly to cloud security command centers.
2. Ultra-Low Carbon & Recycled Aluminum
Driven by European CBAM (Carbon Border Adjustment Mechanism) and global ESG procurement mandates, door manufacturers are adopting hydro-powered low-carbon aluminum billets. Extrusions made from 75%+ post-consumer recycled aluminum lower embodied carbon footprint by over 60% without compromising tensile yield strength.
3. Oversized Monolithic Pivot Systems
Architectural trends favor massive floor-to-ceiling entrance leaves reaching up to 4 meters high and 2 meters wide. These systems rely on heavy-duty bottom pivot oil-bath dampers capable of supporting door leaves weighing up to 500kg with effortless opening force (< 15N).
OEM & ODM Manufacturing Excellence
Partner with Foshan Aludex Doors & Windows Co., Ltd. - Factory-Direct Industrial Capabilities.
Fully Vertical In-House Production
Established in 2004 in Foshan, China, operating over 30,000 m² of factory space. We control aluminum profile extrusion, surface pre-treatment, CNC precision machining, powder coating, and lock assembly under one strict roof.
Custom Engineering & Shop Drawings
Our dedicated R&D team supports complex custom architectural projects. We supply full CAD shop drawings, 3D BIM models, structural wind-load calculation reports, and sample swatches prepared in 1–4 days.
Strict Quality Assurance & Testing
Every access control door unit undergoes rigorous air permeability (q1), watertightness (Δp ≥ 700Pa), structural wind pressure (≥ 4.5kPa), and electronic lock cycle testing (over 200,000 opening cycles) prior to export crating.
Global Logistics & Export Packaging
We provide full export-grade plywood crate packaging with interior corner protectors and moisture-proof wrapping to prevent transport deformation during ocean freight. Fast lead times of 20–40 days for bulk orders.
Access Control Door Sourcing FAQs
Technical and logistical solutions to standard B2B procurement queries.
Our engineering team designs custom internal routing channels and hollow core raceways during the aluminum profile extrusion process. This allows low-voltage wiring (for electric strikes, solenoid locks, RFID keypads, and card readers) to pass smoothly through the door frame and concealed power-transfer hinges without exposing wire harness to external mechanical wear, tampering, or environmental moisture.
For standard architectural doors, 6063-T5 provides an optimal balance of structural rigidity, smooth surface finish for anodizing/powder coating, and corrosion resistance. For high-frequency commercial entries or oversized pivot doors exceeding 300kg per leaf, we utilize 6061-T6 aluminum or heavy-wall 6063-T6 profiles with minimum profile wall thickness of 2.5mm to 3.0mm to guarantee zero structural deflection over decades of operation.
Sample panel production and color swatch approvals typically require 1 to 4 working days. Standard bulk production runs take 20 to 40 calendar days following CAD shop drawing sign-off. Fully custom engineered profiles or specialized fire-rated access doors take approximately 30 to 45 working days. Ocean freight shipping times vary between 20 to 40 days depending on the destination sea port.
We apply high-grade AAMA 2605 compliant PVDF fluorocarbon coatings or Class I anodic oxide films (18-25 micron layer). All pre-treatments utilize multi-stage chemical washing and chrome-free conversion coatings. Our finished surface treatments undergo mandatory ASTM B117 salt spray chamber testing, maintaining structural finish integrity past 3,000 hours without blistering, fading, or peeling.
Yes. Every custom order is shipped with physical assembly manuals, 3D installation videos, and complete electrical wiring connection diagrams for the access control lock hardware. Furthermore, our technical engineering division offers live remote video consultation and online guidance for on-site contractors and installers.
We pack all door leaves in multi-layer protective PE film, thick corner guards, and fully sealed export-grade reinforced wooden crates. In the rare event of transit damage, clients record unboxing video/photos within 48 hours of container unloading. For damage attributable to packaging or handling prior to port delivery, we immediately fast-track free re-production and air-freight replacement components.
To prepare an accurate engineering quote, please provide: 1) Structural rough opening dimensions (Width x Height); 2) Preferred door opening mechanism (Swing, Pivot, Sliding, Double/Unequal); 3) Surface color finish (RAL powder coat, Anodized, Wood grain); 4) Glass performance requirements (Tempered, Laminated, Low-E Double Glazed); 5) Access control lock preferences (Biometric, Keypad, Solenoid Mortise); and 6) Target port of destination.
Ready to Engineer Your Project Entrance Solutions?
Contact our Foshan engineering sales division today for direct factory pricing, CAD shop drawing assistance, and technical OEM specification support.
