Precision-engineered aluminum pivot, cast aluminum relief, and thermal break folding entrance systems custom-manufactured in Foshan, China.
Selecting the ideal exterior door supplier for commercial architectural developments, luxury residential villas, or regional building material distribution networks requires far more than comparing surface aesthetic appeal. As the architectural building envelope becomes increasingly focused on thermal efficiency, structural wind-load compliance, and automated security integration, institutional buyers must evaluate suppliers based on raw material purity, thermal break engineering, profile extrusion precision, and surface coating longevity.
In modern architectural design, the main entry door serves as the primary aesthetic focal point and the first line of defense against severe climate elements and forced entry. Consequently, tier-1 global contractors and B2B importers are shifting away from traditional solid wood—which is prone to swelling, warping, and rot under high humidity—and vulnerable hollow steel doors toward heavy-duty 6063-T5 structural aluminum entry systems and cast aluminum armored doors.
Utilizing high-density 6063-T5 aluminum alloys with multi-point locking rods, concealed heavy-duty hinges, and internal steel reinforcement plates to deliver RC3/RC4 burglar resistance ratings.
Equipped with Polyamide PA66 thermal insulation strips that structurally decouple exterior and interior profile chambers, significantly lowering U-factors and preventing internal condensation.
AkzoNobel or PPG PVDF fluorocarbon powder coatings withstand marine salt-spray environments (over 3,000 hours), extreme UV exposure, and intense rain impact without chalking or peeling.
To assist procurement directors and architectural specifiers in communicating product value to project owners, the following quantitative engineering matrix evaluates key performance parameters across primary entrance door substrate materials:
| Performance Criteria | Cast / Extruded Aluminum (6063-T5) | Structural Carbon Steel | Solid Hardwood (Oak/Teak) | Fiberglass Reinforced Polymer |
|---|---|---|---|---|
| Corrosion & Rust Resistance | Superior (Inherent Oxide Layer + PVDF) | Poor (Requires frequent paint touch-ups) | N/A (Prone to rot, fungus & termite infestation) | High (Chemical & moisture resistant) |
| Dimensional Stability (Humidity/Temp) | Zero Warpage / Thermal Expansion Controlled | High Stability | Poor (Expands, contracts, and cracks) | Moderate to High Stability |
| Max Leaf Height Capability | Oversized up to 6.0 Meters (Pivot Systems) | Heavy; limited by hardware stress | Restricted due to weight sag & warping | Restricted to standard modular sizes |
| Acoustic & Thermal Insulation (STC/U-Value) | PA66 Thermal Break (U ≤ 1.4 W/m²K, STC ≥ 42dB) | Low unless foam-filled; high thermal bridging | Moderate natural insulation | High insulation core |
| Maintenance & Service Life | Zero Maintenance (30+ Year Design Life) | High Maintenance (Rust remediation) | High Maintenance (Re-varnishing every 2 yrs) | Low Maintenance |
Our engineering division, based at Foshan Aludex Doors & Windows Co., Ltd., translates client floorplans and elevation renderings into fully realized CAD shop drawings within 24 hours. Benefit from factory-direct pricing with no intermediary markups.
Get a QuoteAs smart home automation and modern minimalistic architecture redefine modern real estate, B2B procurement trends for luxury villa entrances and multi-family commercial developments are converging around four structural innovations:

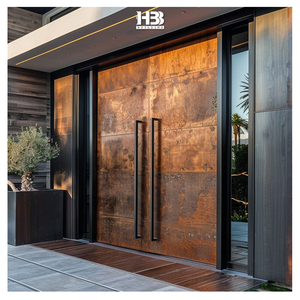

Architects are increasingly rejecting conventional small single-hinge doors in favor of floor-to-ceiling pivot entrance systems. By relocating the rotation axis inward via custom offset pivot hinges, aluminum pivot doors can comfortably support single-leaf widths exceeding 2.5 meters and heights up to 6.0 meters while maintaining effortless push-pull operation with finger-touch pressure.
Traditional mechanical key cylinders are rapidly being replaced by fully concealed, handle-integrated smart lock hardware (such as the T05 and T6 series). Modern luxury entry doors now incorporate 3D structured-light facial recognition, semiconductor fingerprint sensors, encrypted RFID keypad entry, and Tuya/Zigbee smart phone connectivity built directly into CNC-machined flush aluminum pull handles.

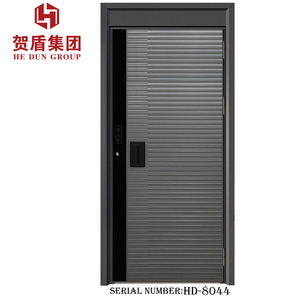

For high-security residences, embassies, and premium villas, cast aluminum armored doors combine heavy internal structural steel skeletal frames with double-layer solid cast aluminum relief panels (10mm–20mm panel thickness). Advanced 5-axis CNC carving machines enable intricate geometric patterns, custom family crests, or minimalist industrial metal finishes without compromising structural bullet and impact resistance.
To satisfy stringent green building energy codes (such as LEED or Passive House benchmarks), modern exterior doors incorporate dual-channel continuous EPDM rubber weatherstripping, drop-down automatic bottom door acoustic seals, and argon-gas-filled triple insulated tempered low-E safety glass.
Founded in 2004, Foshan Aludex Doors & Windows Co., Ltd. has established itself as an industry-leading OEM/ODM manufacturer specializing in high-end architectural aluminum entry doors, oversized pivot doors, all-aluminum armored doors, courtyard gates, and outdoor architectural aluminum structures. Operating out of Foshan, Guangdong—the recognized capital of global aluminum manufacturing—Aludex controls an integrated 30,000 square meter manufacturing infrastructure housing over 300 skilled technicians across two production bases and a dedicated R&D center.
Our complete in-house production chain ensures uncompromised quality control at every phase of manufacturing:
Connect directly with our engineering team to review CAD shop drawings, request material swatches, or lock in direct factory pricing for your upcoming project.
Get a Quote
