Featured Multi-Point Architectural Entrance Systems
Select from engineered aluminum pivot doors, smart security entrances, high-load thermal break systems, and automated courtyard structures manufactured direct in Foshan, China.
ZEKIN Modern American Design House Heat Insulation Fire Prevention Luxury Entrance Pivot Door
Send an Inquiry
WAZZOR NFRC Certified High Load Bearing Aluminum Glass Pivot Door for Luxury Villa Entrance
Send an Inquiry

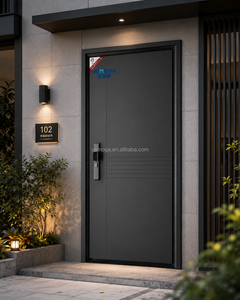

Modern Waterproof Soundproof Steel Pivot Front Entry Door Chinese Exterior Security Main Entrance Door
Send an Inquiry
Modern Residential Front Entry Aluminum Security Door Continuous Spring Chamber Entry Exterior Security Door
Send an Inquiry
Latest Design Original Factory Main Entrance Exterior Front Entry Doors Porte Solid Wood External Pivoting Doors
Send an Inquiry

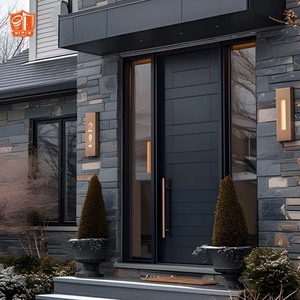

Villa Security Exterior Door Solid Wood Aluminum Modern Waterproof Entry Pivot Door for Houses
Send an Inquiry
Panoramic Two Track Fingerprint Smart Lock Biometric Aluminum Tempered Glass Sliding Door
Send an Inquiry
Smart Electric Invisible Screen Door Automatic Lifting PET Material Insect-proof Wind Pressure Impact Door
Send an InquiryEngineering Multi-Point Locking Systems: Mechanics, Metallurgy, & Structural Integrity
In modern architectural design, the entrance door has evolved from a simple access barrier into a highly engineered structural system. When global importers, real estate developers, and general contractors evaluate China Multi Point Locking Door Manufacturers and Suppliers, understanding the underlying mechanical physics and alloy composition is vital for selecting doors capable of withstanding forced entry, high wind pressure, and thermal degradation.
Standard single-point deadbolts rely on a single latch bolt protruding into a frame strike plate. Under high impact or mechanical prying, the structural strain is concentrated on a single localized area of the jamb, often leading to frame shear or structural failure. In contrast, multi-point locking gear systems distribute mechanical locking forces across multiple perimeter points along the door leaf—typically engaging 3-point, 5-point, or 7-point locking arrays consisting of hook bolts, mushroom head cams, and top/bottom shoot bolts.
Hardened Hook & Deadbolts
Fabricated from high-tensile 304 Stainless Steel or case-hardened alloy, hook bolts extend into heavy-duty strike boxes on the frame. When engaged, the hook geometry grips the frame tightly, preventing the door leaf from being pried open horizontally or vertically.
Mushroom Cam Compression
Adjustable mushroom cams ride within linear drive rods along the perimeter lock strip. Upon handle lift or motor actuation, these cams pull the door panel firmly into the multi-layer EPDM rubber weather seals, achieving EN 12207 Class 4 air tightness.
Integrated Drive Rods & Gearboxes
The transmission gearbox utilizes precision-milled gear teeth housed within zinc-alloy die castings. High-torque internal springs ensure fluid lever operation, rated for over 200,000 continuous opening cycles without mechanical slop or gear slippage.
Material Metallurgy: Why 6063-T5 Aluminum Profile Extrusion Dominates High-End Entrances
Top China door manufacturers utilize prime 6063-T5 aluminum alloy extrusion profiles for door frames and leaf stiles. Compared to standard mild steel or natural timber, architectural aluminum offers an exceptional strength-to-weight ratio, zero moisture absorption, and immunity to rot or termite damage.
| Structural Property | 6063-T5 Architectural Aluminum | Mild Steel Frame | Solid Hardwood Timber |
|---|---|---|---|
| Tensile Strength (MPa) | ≥ 185 MPa | 340 – 400 MPa | 40 – 70 MPa (Parallel grain) |
| Corrosion Resistance | Excellent (Self-passivating oxide layer + Fluorocarbon) | Poor (Requires painting; prone to internal rust) | Poor (Prone to rot, fungus, moisture expansion) |
| Dimensional Stability | Immune to humidity expansion; minimal thermal shift | High stability; heavy dead weight burden | Warps, swells, & splits under seasonal changes |
| Lock Mortise Precision | Micro-milled via multi-axis CNC machines (±0.05mm) | Stamped/welded (Higher clearance tolerances) | Hand routed or gouged (Susceptible to splitting) |
Why Sourcing From Foshan Aludex Guarantees Superior Quality Control
Foshan, Guangdong is recognized globally as the capital of high-end architectural aluminum manufacturing. Operating directly out of Foshan, Foshan Aludex Doors & Windows Co., Ltd. has spent over two decades developing a completely integrated production ecosystem. Unlike assembly workshops that procure pre-extruded profiles and third-party hardware sets, our facilities execute every critical engineering stage under one unified quality management standard.
Our Integrated 6-Stage Manufacturing Workflow
To eliminate dimensional variance and ensure flawless operation of complex multi-point locking gear, our factory implements a closed-loop quality control system across six distinct manufacturing steps:
Precision Profile Extrusion
Extruding virgin 6063-T5 aluminum billets through custom dies to build heavy-duty profile series including T65, T85, T93, and D100 thermal break structures.
Chemical Pre-Treatment
Multi-stage acid etching, degreasing, and chrome-free passivation tanks prepare profile surfaces for maximum paint adhesion and salt-spray resistance.
Electrostatic Powder Coating
Automated vertical spraying booths apply AkzoNobel or PPG fluorocarbon (PVDF) powder finishes, followed by Italian heat-transfer wood-grain technology.
Multi-Axis CNC Milling
High-precision CNC routing centers cut lock mortise slots, hinge pockets, smart lock wiring channels, and cylinder holes according to exact CAD drawings.
Locking Mechanism Assembly
Pre-fitting stainless steel multi-point gearboxes, heavy-duty 3D adjustable concealed hinges, smart electronic locks, and EPDM gasket weather seals.
QC & Ocean Crate Packaging
100% operational testing of lock engagement, followed by film wrapping, corner foam protection, and reinforced plywood ocean freight crating.
Future Procurement Trends in Multi-Point Entrance Systems
As international building codes mandate stricter energy conservation, enhanced security ratings, and smart automation, B2B buyers must align their procurement strategies with four key industry shifts.
1. Mechatronic & Motorized Multi-Point Integration
Traditional manual lift-handle multi-point locks are rapidly giving way to automatic motorized locking drives. Equipped with 12V/24V high-torque solenoids, these integrated systems automatically drive top, bottom, and center deadbolts into frame receivers the instant the door is closed. They seamlessly interface with biometric fingerprint sensors, facial recognition cameras, keypad passcodes, and smart building management systems (Zigbee/Matter/RS485), providing keyless convenience without sacrificing RC3/PAS 24 security ratings.
2. Passive House Thermal Break Profiles (Polyamide PA66)
Global energy regulations require entrance doors to achieve U-factors below 1.2 W/m²K (or R-values above 4.5). Leading manufacturers are transitioning to D100 Series multi-chamber thermal breaks featuring 24mm to 34mm PA66 GF25 polyamide insulation strips. Filled with expanded polyurethane (PUR) insulation foam cores and coupled with triple-pane Low-E argon-filled tempered glass inserts, these doors eliminate thermal bridging and moisture condensation in extreme cold or tropical heat climates.
3. Oversized Architectural Pivot Entrances (Up to 500kg Capacity)
Modern architectural luxury trends favor grand, high-ceiling entrances spanning up to 4 meters in height and 2 meters in width. Standard hinges buckle under such massive leaf weight. Procurement is shifting toward heavy-duty floor-concealed hydraulic pivot hinges capable of supporting 500kg+ panel weights with 90° hold-open, soft-closing damper speed controls, and specialized continuous perimeter multi-point locking rods that maintain air seal integrity along tall vertical stiles.
4. Zero-Defect OEM Packaging & Modular Installation Ready
To reduce expensive job-site installation labor in Western markets, global distributors require doors supplied as pre-hung, factory-tested assemblies. Leading Chinese suppliers now offer pre-installed multi-point locks, pre-drilled frame mounting anchors, knock-down (KD) pre-aligned outer frames, and digital installation guides via QR codes. Packaging has upgraded from standard bubble wrap to custom heavy-duty honeycomb card boxes and IPPC-stamped fumigated wooden crates.
Frequently Asked Questions for B2B Importers & Contractors
Get definitive answers regarding order specifications, transit damage protection, customization flexibility, and international compliance when buying doors from China.
Ready to Elevate Your Project Entrance Security & Aesthetics?
Connect directly with Foshan Aludex engineering specialists. Submit your architectural floor plans, opening schedules, or custom OEM specifications for a comprehensive technical evaluation and factory-direct quote.
