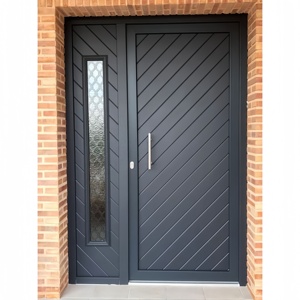

Customized Size Black Aluminum Frame Modern Design Solid Core Exterior Pivot Entry Door For Villa Front Doors Security Gate
Outdoor Waterproof Broken Bridge Aluminum Door Multi-seal Anti-leakage Thermal & Sound Insulation Factory Direct Supply
Residential Silent Roller Shutter Door Quiet Rolling Door for Villa Garage and Home Entrance

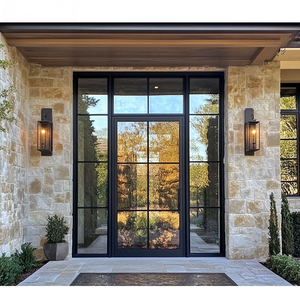

XIYATECH Modern Design Anti-theft French Front House China American Exterior Door Main Entrance Entry Metal Wrought Iron Doors
The Strategic Advantage of Sourcing Pivot Front Doors from Top China Factories
In modern luxury residential and commercial architectural projects, the main entrance door serves as the primary visual and structural anchor of the entire facade. Over the past decade, oversized architectural pivot doors have rapidly superseded conventional side-hinged double doors in high-end developments across North America, Europe, Australia, and the Middle East. Sourcing these complex architectural elements requires precise structural engineering, precise metal fabrication tolerances, and reliable surface finishing capabilities.
China—specifically the Foshan industrial cluster in Guangdong Province—has established itself as the world's epicenter for architectural aluminum extrusion, structural door engineering, and advanced hardware integration. Top China pivot front door factories leverage fully vertically integrated supply chains, spanning raw alloy extrusion, precision CNC machining, chemical surface pre-treatment, PVDF fluorocarbon spraying, and complex pre-assembly testing under a single quality control standard.
Architectural Engineering & Mechanical Kinetics
Unlike standard hinged doors that transfer leaf weight through lateral jamb-mounted hinges, heavy-duty pivot doors operate on a vertical axis system positioned on the top transom and floor substrate. This floor-bearing mechanism transfers the entire dead load of the door leaf—often weighing between 200 kg and 800 kg—directly into the structural slab. As a result, China's premier manufacturers can produce extraordinary leaf dimensions reaching heights up to 4,500 mm and widths exceeding 2,200 mm without compromising smooth, feather-light rotation.
Engineered with high-tensile 6063-T5 aluminum profiles, these entrance systems utilize multi-chamber internal web geometry reinforced with internal stainless steel structural rods. This mechanical configuration mitigates structural deflection under severe wind loads (wind load resistance rated up to 5.0 kPa), ensuring absolute dimensional stability despite extreme thermal gradients between interior air-conditioned spaces and harsh exterior environments.
Technical Specification Matrix: China Pivot Door Series Comparison
To assist procurement managers, architects, and real estate developers in selecting the optimal structural specification for their project climate and structural opening, the following matrix outlines the key engineering parameters of premier factory profile systems:
| Profile Series | Structural Depth | Max Leaf Weight | Thermal U-Factor | Acoustic Rating (STC) | Primary Target Application |
|---|---|---|---|---|---|
| T65 Standard Series | 65 mm frame | 250 kg per leaf | 2.4 W/m²K | 32 dB | Bespoke Residential Townhouses & Moderate Climates |
| T85 Heavy-Duty Series | 85 mm frame | 450 kg per leaf | 1.8 W/m²K | 38 dB | Luxury Villa Main Entrances & Commercial Entrances |
| T93 Armored Series | 93 mm solid core | 600 kg per leaf | 1.5 W/m²K | 42 dB | High-Security Villa Estates & Extreme Wind Zones |
| D100 Thermal Break | 100 mm thermal frame | 800 kg per leaf | 1.1 W/m²K | 45 dB | Ultra-Low Energy Passive Houses & Severe Cold/Hot Regions |
Key Manufacturing Innovations & Future Industry Trends
The international entrance door market is undergoing a seismic technical evolution driven by stringent building energy codes, modern minimalist architecture, and smart access technology. China's top factories are pioneering several critical advancements:
PA66 Thermal Break Architecture
Integration of 24mm to 34mm Polyamide (PA66 GF25) thermal insulation barrier strips inside profile chambers, stopping thermal bridging and eliminating condensation risks in cold climates.
Embedded Smart Biometric Locks
Seamless concealment of 3D facial recognition, biometric fingerprint sensors, wireless Tuya/Zigbee smart integration, and motorized multi-point lock mortises hidden inside vertical pull handles.
Sintered Stone & Wood Hybrids
Skins featuring Italian-grade sintered porcelain slabs, anodized copper, zero-maintenance wood-grain thermal transfers, or solid natural black walnut panels supported by rigid inner aluminum cores.
Enterprise Advantage: Foshan Aludex Doors & Windows Co., Ltd.
Established in 2004, Foshan Aludex Doors & Windows Co., Ltd. stands as a benchmark manufacturer in China's premium architectural opening sector. Operating a state-of-the-art 30,000 square meter manufacturing facility supported by over 300 skilled technicians, engineers, and quality control inspectors, Aludex delivers comprehensive custom entrance solutions to over 80 countries worldwide.
In-House Manufacturing Ecosystem
Unlike trading entities or assembly-only workshops that rely on third-party extruders and coaters, Aludex maintains complete vertical control across the production lifecycle:
- Raw Alloy Extrusion: Custom profile extrusion utilizing virgin 6063-T5 aluminum billet, ensuring uniform grain structure and flawless tensile strength.
- Advanced Surface Finishing: Automatic horizontal powder coating and PVDF fluorocarbon spraying lines capable of producing 25-micron protective layers resistant to UV degradation and coastal salt-spray corrosion.
- Precision CNC Machining: Multi-axis CNC milling centers achieving cutting and lock routing tolerances within ±0.1mm, ensuring flawless hardware fitment.
- Pre-Shipment Trial Assembly: Every door leaf and outer frame undergoes 100% full structural pre-assembly, hydraulic pivot calibration, weather-seal compression checks, and laser alignment prior to export packaging.
Frequently Asked Questions (FAQ) for B2B Sourcing & Procurement
Below are answers to critical commercial and technical questions frequently submitted by real estate developers, building material importers, architects, and general contractors during project evaluation:
What happens if doors arrive deformed, damaged, or scratched during sea transport?
Can B2B buyers request physical material samples before placing a bulk container order?
Do you provide technical shop drawings and installation documentation for local installation teams?
What is the standard production lead time and ocean transport schedule for custom pivot doors?
Does Aludex accept full OEM and ODM cooperation for regional door brands and distributors?
What exact technical information is required to receive a fast, precise factory quotation?
Ready to Engineer Your Custom Entrance Project?
Connect directly with our senior structural door engineers. Send us your project floor plans, opening schedules, or design inspiration images for immediate technical feedback, CAD shop drawings, and competitive factory-direct pricing.
