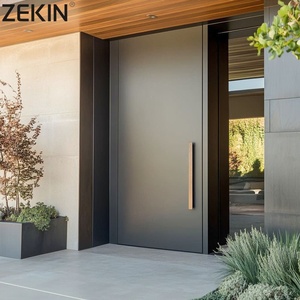

Outdoor Back Painted Glass Anti-Theft Exterior Security Aluminum Cast Pivot Door
Heavy-duty aluminum cast pivot frame with acoustic back-painted glass, acoustic insulation core, and multi-point smart security systems.
Inquire Now
Catalog Overview
Export-Grade Insulated Entrance Doors for Osaka Projects
Explore our top eight architectural door systems engineered for residential villas, luxury hotels, apartment lobbies, and commercial developments across Kansai.
UL 90-Minute Fire-Rated Thermal & Acoustic Interior Door for Hotel & BNB Lobby
Certified fire-resistant door core engineered for hospitality projects, offering superior heat shielding and acoustic isolation.
Inquire Now
Modern Aluminum Security Front Entrance Door Contemporary Minimalist Series
Sleek thermal break profile designed for contemporary residential facades, delivering typhoon-grade wind pressure resistance.
Inquire Now

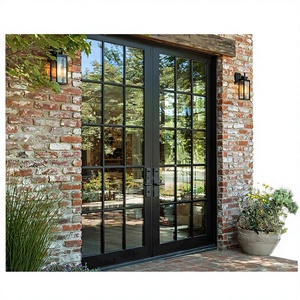

French Retro Black Aluminum Exterior Double Swing Door with Tempered Insulated Glass
Aesthetic black extruded aluminum double door with Low-E double glazing for optimal light transmission and sound damping.
Inquire Now
Minimalist Style Finished Plywood Armor Composite Door for Apartment Lobby Entrance
Multi-layer acoustic dampening core wrapped in durable finished composite paneling for heavy-traffic residential entrances.
Inquire Now
Oversized AS2047 Certified Glazed Exterior Aluminum Pivot Door for Grand Mansions
Architectural pivot door supporting tall opening dimensions, equipped with thermal barrier profiles and heavy-duty floor spring pivots.
Inquire Now
Airtight & Waterproof 2-Panel Townhouse Entry Patio Door with Multi-Point Lock
Precision weather-sealed entrance system with NFRC & CE certified thermal insulation values for coastal and urban homes.
Inquire Now
Security Minimalist Wrought Iron & Aluminum Composite Front Door for Modern Villas
Unique craft design integrating reinforced structural steel and thermal aluminum frame technology for high-end protection.
Inquire Now
Industry Whitepaper & Technical Insights
Navigating Thermal Performance & Sourcing Dynamics in Osaka’s Architectural Sector
An engineering analysis for Japanese general contractors, architectural firms, real estate developers, and international trading companies sourcing premium entrance assemblies for Kansai urban developments.
Osaka represents one of Asia's most dynamic construction environments, characterized by dense urban living, rigorous energy efficiency mandates, and unique geographical climatic conditions. Located along Osaka Bay in the Kansai region, the prefecture experiences a humid subtropical climate (Köppen Cfa) featuring intense hot, humid summers, damp winter drafts, and exposure to severe seasonal typhoons coming off the Pacific Ocean. As Japan accelerates its commitment toward Net Zero Energy Houses (ZEH) and strict environmental standards under the CASBEE Osaka (Comprehensive Assessment System for Built Environment Efficiency) framework, building envelope specs—especially exterior entry doors—have become critical thermal control points.
Traditionally, Japanese residential construction relied heavily on timber frames or uninsulated single-panel aluminum doors. However, modern Osaka urban developments in wards like Chuo-ku, Nishi-ku, Kita-ku, and affluent suburban enclaves like Minoo, Ikeda, and Suita demand superior performance. Sourcing thermal break entry doors from specialized global manufacturers provides Osaka importers and developers with a massive competitive edge: architectural-grade structural strength, cutting-edge thermal insulation values ($U \le 1.2 \text{ W/m}^2\cdot\text{K}$), enhanced acoustic damping against urban rail traffic (Nankai/Midosuji lines), and factory-direct cost efficiencies that maintain project profitability.
Thermal Barrier Engineering
Integration of multi-chambered PA66-GF25 polyamide thermal break strips with high-density Polyisocyanurate (PIR) insulated cores. Effectively eliminates cold bridging in Osaka's chilly winters and resists severe solar radiation heat gain during intense July-August humidity.
Typhoon & Wind Pressure Resistance
Kansai's typhoon season brings violent wind gusts exceeding 50 m/s. Our aluminum entry doors are structural load tested to 3600 Pa (JIS A 4706 S-6 Grade / AS2047 certified), preventing frame racking, air infiltration, and rainwater leakage under severe storm conditions.
Urban Acoustic Damping (STC 42 / T-3)
Osaka’s high-density mixed-use zoning requires sound reduction against street noise and elevated transit lines. Multi-gasket EPDM perimeter seals combined with acoustic laminated glass yield sound attenuation up to 42 decibels.
Material Science & Extrusion Tech
Anatomy of an Export-Grade Insulated Entrance System
Understanding the raw material selection, extrusion tolerances, surface pre-treatments, and locking mechanisms that guarantee 30+ years of operational durability in coastal environments.
When evaluating entry door suppliers for the Osaka market, general contractors must look beyond superficial facade aesthetic appeal. True performance resides within structural cross-sections and hardware integration. At Foshan Aludex Doors & Windows Co., Ltd., every door panel is manufactured using high-tensile 6063-T5 architectural aluminum alloys, precision-milled with CNC tolerance levels under 0.1mm.
1. Profile Series & Wall Thickness
Utilizing heavy-gauge 2.0mm to 3.0mm primary wall thickness extrusions across T65, T85, and D100 thermal break series. Deep structural profiles prevent door sag over decades of heavy daily operation, allowing oversized pivot leaves up to 4 meters high.
2. Surface Finishing & Corrosion Control
Osaka Bay’s salt-laden sea air rapidly corrodes low-grade coatings. Aludex applies AkzoNobel PVDF (Fluorocarbon) electro-static spray and anodized pretreatment, certified for ISO 9227 salt-spray exposure exceeding 3,000 hours without surface degradation or fading.
3. Glazing & Thermal Glass Units
Featuring double (5mm+12Ar+5mm) or triple (5mm+9Ar+5mm+9Ar+5mm) tempered safety glass infused with Low-Emissivity coatings. Argon gas filling reduces internal convection, meeting energy compliance for Japanese residential ZEH requirements.
4. Smart Hardware & Multi-Point Locks
Integrated access security systems including fingerprint recognition, RFID card, PIN code, and mobile app integration (T05/T6 series) paired with 3-point or 5-point stainless steel deadbolt lock bodies engineered to resist physical breach.
Technical Comparison: Door Categories vs. Osaka Architectural Standards
Use this specification matrix to match door profile engineering with your specific site location in Kansai.
| Door Specification Series | Thermal U-Value (W/m²K) | Acoustic Rating (STC / JIS) | Wind Load Class | Fire Resistance | Recommended Osaka Application |
|---|---|---|---|---|---|
| Thermal Break Cast Aluminum Pivot | 1.1 – 1.3 W/m²K | STC 40 (T-3) | 3600 Pa (Severe) | Non-Combustible Core | Luxury Villas in Minoo, Ashiya, Suburban Mansions |
| UL 90-Min Fire-Rated Guest Door | 1.4 – 1.6 W/m²K | STC 38 (T-2) | 2400 Pa (Standard) | UL 90 Minutes / JIS 1-Hr | Minpaku BNBs, Boutique Hotels in Namba & Umeda |
| Modern Minimalist Security Swing | 1.2 – 1.4 W/m²K | STC 42 (T-3) | 3000 Pa (High) | Flame Retardant PIR | Urban Townhouses, High-Density Residence in Chuo-ku |
| Retro French Black Glazed Swing | 1.3 – 1.5 W/m²K | STC 36 (T-2) | 2400 Pa (Standard) | Tempered Double Glass | Cafes, Boutique Lobbies, Nakazaki-cho Commercial |
| All-Aluminum Armored Main Entry | 1.0 – 1.2 W/m²K | STC 44 (T-4) | 3600 Pa (Severe) | 60-Min Rated Armor Panel | High-Security Private Estates, Diplomatic Quarters |
Local Project Integration
Tailored Application Scenarios Across Kansai Real Estate
How specialized door configurations solve micro-climate, space constraints, and zoning regulations in distinct Osaka neighborhoods.
Suburban Villas (Minoo, Ashiya, Ikeda)
Hillside luxury residences in Osaka’s northern suburbs face higher wind speeds and lower winter temperatures. Oversized Thermal Break Cast Aluminum Pivot Doors deliver striking entrance grandeur while maintaining maximum thermal containment and airtightness against mountain updrafts.
Urban Multi-Family & Minpaku (Namba, Umeda)
Commercial guest houses and high-density apartments require strict compliance with Japan’s Fire Defense Law. Our UL 90-Minute Fire Rated Doors provide essential compartmentalization for licensed Minpaku operations while offering sound attenuation against urban nightlife noise.
Machiya & Historic Commercial Retrofits
Renovating heritage properties in Nakazaki-cho or bordering Kyoto requires subtle aesthetic harmony. Customized French Retro Black Aluminum & Wood Grain Composite Doors match traditional dark timber profiles while upgrading modern security and thermal insulation.
Procurement & Compliance FAQ
Frequently Asked Questions by Osaka Importers & Contractors
Get authoritative technical clarity on compliance, custom engineering, ocean logistics to Osaka Port, and warranty coverage.
Q1:
How do imported thermal break doors comply with Japan's CASBEE & ZEH energy standards?
Our thermal break entrance doors feature PA66-GF25 polyamide barrier strips and Low-E double/triple glazing units that achieve heat transmission coefficients ($U$-values) as low as $1.1 \text{ W/m}^2\cdot\text{K}$. We provide full thermal performance engineering test reports to assist Japanese architects with energy calculations for CASBEE Osaka ratings and ZEH qualification submissions.
Q2:
What measures protect aluminum door hardware against coastal salt air around Osaka Bay?
All structural profiles undergo a multi-stage pre-treatment wash before receiving an AkzoNobel PVDF (Fluorocarbon) coating or hard anodized finish. Hardware components, hinges, and lock bodies are forged from high-grade SUS304 or SUS316 stainless steel, passing 3,000-hour neutral salt-spray (NSS) lab testing to resist coastal rust.
Q3:
Are Aludex door frame assemblies engineered for Japan's seismic drift requirements?
Yes. Our structural framing systems incorporate elastic perimeter expansion anchors and heavy-duty EPDM gasket buffers designed to absorb story drift angles up to $1/120$. This prevents door frame jamming and structural glass cracking during seismic events in the earthquake-prone Kansai area.
Q4:
What fire certifications apply to doors used in Osaka guest houses (Minpaku) and hotels?
Our fire-rated door series carries international UL 90-minute certifications and non-combustible core test reports. They meet the strict perimeter compartment safety criteria enforced under Japan's Fire Defense Law for commercial hospitality, boutique inns, and high-density residential buildings.
Q5:
What is the shipping lead time from your manufacturing hub to Osaka Port (Nanko)?
Standard custom production runs take approximately 25 to 35 working days. Direct sea freight container transit from Southern China ports to Osaka Port (Nanko) typically requires only 4 to 7 days in transit, allowing swift delivery for tightly scheduled construction timelines.
Q6:
How are damaged goods or transit scratch risks mitigated during ocean transport?
Every door unit undergoes strict 6-layer export packaging: protective blue film on aluminum profiles, foam corner guards, honeycomb cardboard cladding, vacuum plastic wrapping, and fully enclosed IPPC-certified fumigated wooden crates with moisture-absorbent desiccant packs.
Direct Factory Advantage
Foshan Aludex Doors & Windows Co., Ltd.
Founded in 2004, Aludex operates a state-of-the-art 30,000 m² manufacturing plant in Foshan, China—the world’s premier aluminum extrusion ecosystem. With over 300 skilled technicians, 2 automated production bases, and a dedicated R&D engineering facility, we provide end-to-end OEM and ODM door manufacturing for international trade buyers, importers, and project builders.
- Fully integrated chain: Billet extrusion, thermal break assembly, anodizing, PVDF coating & CNC milling
- Rigorous QC testing: 100% pre-assembly inspection of frame squaring, hardware routing, and seal fit
- Bespoke CAD shop drawings and rapid physical sample swatch turnaround within 1 to 4 days
